Evaluating Maxbotix Ultrasonic Sensors for Monitoring Stream Base Flow

By Dave Yake on 2020-11-20 6 Comments

Evaluation by the Save our Water, Watershed Hydrologic Analysis Team, Marion Waggoner and Dave Yake.

Background

Broad Run drains a 10 km² watershed straddling southeastern Pennsylvania and northwest Delaware. Commercial groundwater withdrawal from the aquifer underlying the Broad Run watershed has been approved, but questions about the effect of this withdrawal on Broad Run flow and water quality remain. To address these questions, our organization (Save Our Water) started a stream monitoring program on Broad Run in late 2014.

Our primary objective was to establish a baseline of stream discharge throughout the year that could be used to evaluate the effect of commercial pumping when it begins.

We used an acoustic doppler velocimeter (ADV) to measure the velocity of water flow and calculate discharge. We then developed a stream rating curve to relate water stage (depth, an easy-to-continuously-measure parameter) to water discharge (volume per time, a more difficult to measure parameter but more relevant to our objective).

Our rating curve allows us to continuously predict water discharge from water stage. Multiple rating curves were developed at several locations with particular emphasis on the low flow periods because these periods are when the effect of commercial pumping from the aquifer is expected to be most apparent.

Real-time continuous data from New Garden Township’s EnviroDIY monitoring station allows us to convert stream depth measurements to discharge using our rating curve, but this site is upstream from the commercial well. We needed additional stream flow data from further downstream but did not have money for a submerged pressure (depth) sensor.

We decided to evaluate the Maxbotix ultrasonic sensors for possible monitoring of baseflow stream levels.

Equipment List and Setup

Mayfly Data Logger with 5-minute logging intervals
Maxbotix HRXL-MaxSonar-WRM (MB7389) sensor
Maxbotix HR-Maxtemp-795 sensor
Onset HOBO Water Level Logger U20-001-04
DHT11 temperature and humidity sensor
Arduino IDE and a sketch provided by Shannon Hicks at Stroud Water Research Center (code provided below).

We selected the MB7389 sensor for distance resolution and weather resistance. We initially tested just one sensor but added another when unexpected issues surfaced.

The MB7389 sensors were tested by pointing them downward at a stationary dry target. In the stream, sensors were mounted on standpipes and, later, on a boom extending over open water. We limited the standpipe diameter to 4 inches because a larger standpipe would have been too disruptive to flow in a small stream and would catch lots of debris.

Reviewing the Results

The Positives

Delivers stable data: The two sensors delivered very stable distance data on test stands indoors — stationary plates as targets — at a constant ambient temperature. Generally, over many hours and at a distance near 1 meter, the values varied only about +/- 1 to 2 millimeters.

Functionally impeccable: Both sensors continued to function after extensive time outdoors in operation at temperatures from below 0 degrees Celsius to as high as 39 degrees Celsius.

Extremely rugged: One sensor was washed away during a huge flood on August 7, 2020. A couple of days later we found the sensor and the mounting washed up on the bank in a pile of debris. In spite of the prolonged immersion, the sensor was completely functional and still very accurate.

Remarkable performance: After mounting the sensors over open air above the water, one sensor has operated for nine months, taking ten data points (for averaging) at each 5 minute interval, without returning a single “bad” data value. This is remarkable performance compared to the earlier erratic problems with “bad” data when mounted in standpipes.

Low cost: The sensors cost about $125 each.

Very good depth change performance: During a runoff event where the temperature changes are minor, the Maxbotix sensor delivers very good depth change performance as illustrated in the chart below. At peak flow there is about a 21 millimeter average difference between the Maxbotix and Onset Depth sensors out of a 370 millimeter rise in depth (or about 5.7%). The Onset depth sensor was located on the side of a large stake and could have detected some depth depression at higher peak flow compared to the Maxbotix which was located 2 feet downstream where there was less surface turbulence. Therefore, the 5.7% difference at peak flow is likely a real detected difference in stream depth. Overall, when the Maxbotix is used to measure stream surface height changes using a boom configuration performance is excellent. However, using the Maxbotix as an absolute measure of distance is complicated by a strong temperature variance bias.

*During a runoff event where the temperature changes are minor, the Maxbotix sensor delivers very good depth change performance.*

The Negatives

“Bad” distance data: When mounted in standpipes, the Maxbotix MB7389 sensors sometimes delivered “bad” distance data — generating values of 300 millimeters when the range was much larger than 300. On rare occasions, the distances might be intermediate between 300 and the real value. Note that these MB7389 sensors are not very accurate below 500 millimeters (50 centimeters) but range well out to about 5 meters. The lower cutoff is approximately 300 millimeters.

We noted that the “bad” data seemed to occur at times when the temperature was dropping and believe that the issue was condensation on the walls of the standpipes. Therefore, the situation should have improved when we insulated the exterior of the standpipes with bubble wrap (would not waterlog) which was over-wrapped with foil. Unfortunately, this helped only marginally. The “bad” data might occur for a single interval or might occur for many consecutive intervals for long time periods (up to a few hours).

We tried adding delays between startup and taking data (to allow the sensor to stabilize) and start to average/integrate distances with built-in software. No improvement was seen.

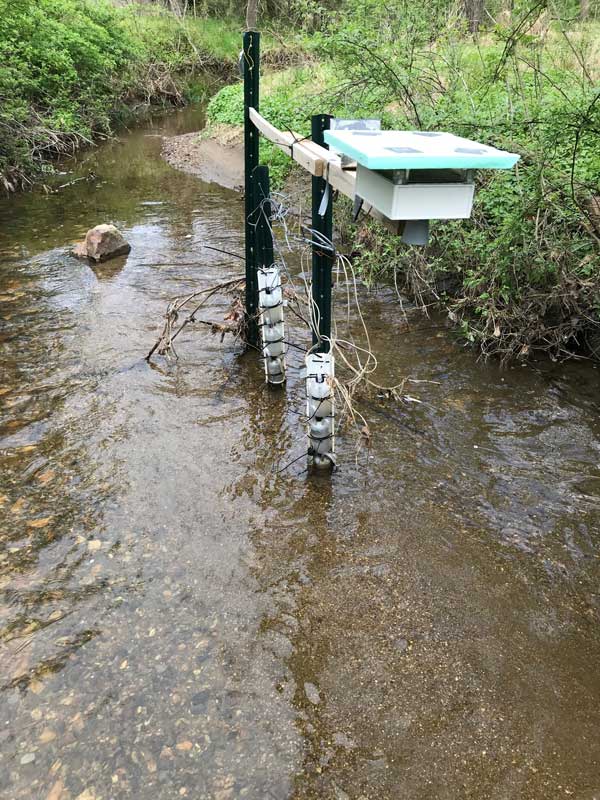

We had to go to a boom mount of the sensor in open air to eliminate bad data.

Whether mounted over a standpipe or boom-mounted in open air in a stable test stand at a fixed distance to the target, the sensors show large changes in reported distances (as much as +/- 1 centimeter or more) with normal ambient temperature cycling. In fact, we observed this in three conditions:

Using the sensor’s internal temperature monitor/ correction for temperature.
Using the Maxbotix external temperature sensor for temperature compensation.
Attempting to correlate the Maxbotix temperature compensated data with either the Mayfly board temperature or a DHT temperature and % RH sensor. Those results will be discussed along with data in the next section.

Test Data versus Temperature

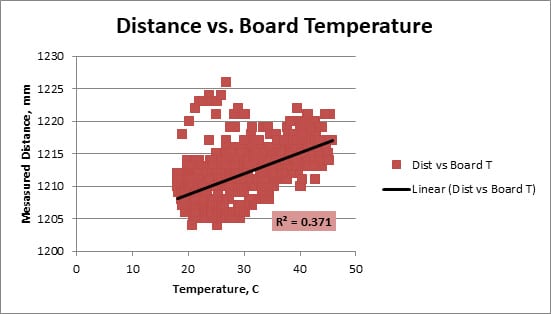

The issue with temperature seen with the MB7389 sensors is well illustrated in the three figures below. The results are from a stable test stand outdoor mounting over a stationary plate target when the weather was warm/sunny days and cooler nights. The MB7389 was equipped with the Maxbotix external temperature sensor (HR-Maxtemp sensor) which was mounted in the shade under the logger box. The logger box was covered with foil to minimize solar heating of the logger box interior.

Note the +/- spread of the distance data above at any given temperature and % RH. (Click on an image to enlarge.)

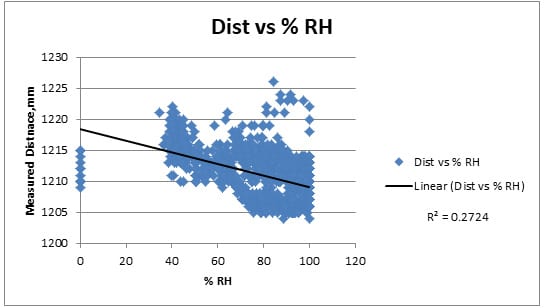

A “Multiple Regression Analysis” of the distance vs. Mayfly board temperature or DHT temperature, and percent relative humidity delivered a root squared error the same as using only board temperature: 37%. As would be expected from theory, the relative humidity has very low significance.

Conclusions

If used in a boom mounting to eliminate issues associated with condensation inside standpipes, the MB7389 sensors reliably deliver distance data over a wide temperature range and other weather conditions. Furthermore, the sensor delivered excellent stream depth change performance because the temperature change during the rain event and runoff was minor.
In spite of using the Maxbotix external temperature sensor for better temperature compensation, the distance data (fixed test stand) vary significantly with changes in ambient temperature — as much as +/- 1 centimeter or more. It is questionable whether the Maxbotix temperature compensation software can be considered worthwhile since the same results were seen for both ultrasonic sensors.
Work to correlate the distance changes with other measures of temperature (Mayfly board temperature or an independent temperature as from the DHT digital temperature and humidity sensor) could account for at most 40% of the changes.
We recommend careful consideration of these results before deploying these sensors if the objective is to have an absolute measure of depth/distance. However, the sensor is excellent for measuring changes in depth over a time frame where the temperature is not changing significantly.

#include &lt;SoftwareSerial_PCINT12.h&gt;

#include &lt;Sodaq_PcInt_PCINT0.h&gt;



//sketch to log sonar data on Mayfly
//this one can use  digital pin intermittent power or continuous power from board +rail
//or a battery pack to power Maxbotix
//serialSonar begin and end empty buffer between each read so all data is new each time
//this also solves problems with the interrupts not allowing sleep code
#include &lt;Wire.h&gt;
#include &lt;avr/sleep.h&gt;
#include &lt;avr/wdt.h&gt;

#include &lt;SPI.h&gt;
#include &lt;SdFat.h&gt;
SdFat SD;

#include &lt;RTCTimer.h&gt;
#include &lt;Sodaq_DS3231.h&gt;



SoftwareSerial sonarSerial(11, -1);

boolean stringComplete = false;

#define READ_DELAY 1

//RTC Timer
RTCTimer timer;

String dataRec = "";
int currentminute;
long currentepochtime = 0;
float boardtemp = 0.0;

int batteryPin = A6;    // select the input pin for the potentiometer
int batterysenseValue = 0;  // variable to store the value coming from the sensor
float batteryvoltage;

int range_mm1;
int range_mm2;
int range_mm3;
int range_mm4;
int range_mm5;
int range_mm6;
int range_mm7;
int range_mm8;
int range_mm9;
int range_mm10;
int range_mm;
int attempts;
int average_mm;
int total;
//RTC Interrupt pin
#define RTC_PIN A7
#define RTC_INT_PERIOD EveryMinute

#define SD_SS_PIN 12

//The data log file
#define FILE_NAME "SonicLog.txt"

//Data header
#define LOGGERNAME "Ultrasonic Maxbotix Sensor Datalogger"
#define DATA_HEADER "DateTime,Loggertime,BoardTemp,Battery_V,SonarRange_mm 1 to 10"


void setup()
{


  rtc.begin();
  delay(100);
  pinMode(8, OUTPUT);
  pinMode(9, OUTPUT);

  pinMode(10, OUTPUT);



  greenred4flash();   //blink the LEDs to show the board is on

  setupLogFile();

  //Setup timer events
  setupTimer();

  //Setup sleep mode
  setupSleep();

  ///Serial.println("Power On, running: ultrasonic_logger_example_1.ino");
  ///Serial.println("Power On, running: ultrasonic_logger_example_1.ino");
          digitalWrite(8, HIGH);
          digitalWrite(10, HIGH);
          stringComplete = false;

          delay(5000);//wait for board to stabilize
          sonarSerial.begin(9600);
          range_mm = SonarRead();//does not add data to a string, included only for debugging

          sonarSerial.end();
           attempts = 0;
           if (range_mm &lt;= 300 || range_mm &gt;= 2000 )
          {

            do {

              sonarSerial.begin(9600);
              delay (250);

              range_mm = SonarRead();
              stringComplete = false;
              attempts++;
              sonarSerial.end();
              delay (50);
            }
            while (attempts &lt;21 &amp;&amp; (range_mm == 300 || range_mm == 0));
          }

          average_mm = range_mm;  //sets initial average for trapping on first reading
         digitalWrite(10, LOW);
          digitalWrite(8,LOW);

  delay (1000);//added to show blink of led before loop.
}

void loop()
{

  //Update the timer
  timer.update();


  if(currentminute % 5 == 0)
     {
          digitalWrite(8, HIGH);
          dataRec = createDataRecord();
          stringComplete = false;
          delay(100);
          digitalWrite(10, HIGH);//turns on  power to sonar
          delay(10000);//wait 10 sec for sonar to stabilize after startup
          sonarSerial.begin(9600);//open to allow data from sonar to enter input serial buffer
          //also clears buffer of old data
          delay(250);
          range_mm1 = SonarRead();
          stringComplete = false;
          sonarSerial.end();//closes serial and stops input to buffer
          delay(50);
          attempts = 0;
          if (range_mm1 &lt;= 300 || range_mm1 &gt;= 2000 )
          {
            do {
              sonarSerial.begin(9600);
              delay (250);
              range_mm1 = SonarRead();
              stringComplete = false;
              attempts++;
              sonarSerial.end();
              delay (50);
            }
            while (attempts &lt;11 &amp;&amp; (range_mm1 &lt;= 300 || range_mm1 &gt;= 2000));
          }

          delay (200);
          sonarSerial.begin(9600);
          delay(250);
          range_mm2 = SonarRead();
          stringComplete = false;
          sonarSerial.end();
          attempts = 0;
          delay(50);
          if (range_mm2 &lt;= 300 || range_mm2 &gt;= 2000 )
          {
            do {
              sonarSerial.begin(9600);
              delay (250);
              range_mm2 = SonarRead();
              stringComplete = false;
              sonarSerial.end();
              attempts++;
              delay (50);
            }
            while (attempts &lt;11 &amp;&amp; (range_mm2 &lt;= 300 || range_mm2 &gt;= 2000));
          }


          delay (200);
          sonarSerial.begin(9600);
          delay(250);
          range_mm3 = SonarRead();
          stringComplete = false;
          sonarSerial.end();
          delay(50);
          attempts = 0;
          if (range_mm3 &lt;= 300 || range_mm3 &gt;= 2000 )
          {
            do {
              sonarSerial.begin(9600);
              delay(250);
              range_mm3 = SonarRead();
              stringComplete = false;
              sonarSerial.end();

              attempts++;
              delay (50);
            }
            while (attempts &lt;11 &amp;&amp; (range_mm3 &lt;= 300 || range_mm3 &gt;= 2000));
          }


          delay (200);
          sonarSerial.begin(9600);
          delay (250);
          range_mm4 = SonarRead();
          stringComplete = false;
          sonarSerial.end();
          attempts = 0;
          delay (50);
          if (range_mm4 &lt;= 300 || range_mm4 &gt;= 2000 )
          {
            do {
              sonarSerial.begin(9600);
              delay(250);
              range_mm4 = SonarRead();
              stringComplete = false;
              sonarSerial.end();
              attempts++;
              delay (50);
            }
            while (attempts &lt;11 &amp;&amp; (range_mm4 &lt;= 300 || range_mm4 &gt;= 2000));
          }





          delay (200);
          sonarSerial.begin(9600);
          delay (250);
          range_mm5 = SonarRead();
          stringComplete = false;
          sonarSerial.end();
          delay(50);
          attempts = 0;
          if (range_mm5 &lt;= 300 || range_mm5 &gt;= 2000 )
          {
            do {
              sonarSerial.begin(9600);
              delay(250);
              range_mm5 = SonarRead();
              stringComplete = false;
              sonarSerial.end();
              attempts++;
              delay (50);
            }
            while (attempts &lt;11 &amp;&amp; (range_mm5 &lt;= 300 || range_mm5 &gt;= 2000));
          }


          delay (200);
          sonarSerial.begin(9600);
          delay(250);
          range_mm6 = SonarRead();
          stringComplete = false;
          sonarSerial.end();
          delay(50);
          attempts = 0;
          if (range_mm6 &lt;= 300 || range_mm6 &gt;= 2000 )
          {
            do {
              sonarSerial.begin(9600);
              delay(250);
              range_mm6 = SonarRead();
              stringComplete = false;
              sonarSerial.end();
              attempts++;
              delay (50);
            }
            while (attempts &lt;11 &amp;&amp; (range_mm6 &lt;= 300 || range_mm6 &gt;= 2000));
          }

          delay (200);
          sonarSerial.begin(9600);
          delay(250);
          range_mm7 = SonarRead();
          stringComplete = false;
          sonarSerial.end();
          delay(50);
          attempts = 0;
          if (range_mm7 &lt;= 300 || range_mm7 &gt;= 2000 )
          {
            do {
              sonarSerial.begin(9600);
              delay(250);
              range_mm7 = SonarRead();
              stringComplete = false;
              sonarSerial.end();
              attempts++;
              delay (50);
            }
            while (attempts &lt;11 &amp;&amp; (range_mm7 &lt;= 300 || range_mm7 &gt;= 2000));
          }

          delay (200);
          sonarSerial.begin(9600);
          delay(250);
          range_mm8 = SonarRead();
          stringComplete = false;
          sonarSerial.end();
          delay(50);
          attempts = 0;
          if (range_mm8 &lt;= 300 || range_mm8 &gt;= 2000 )
          {
            do {
              sonarSerial.begin(9600);
              delay(250);
              range_mm8 = SonarRead();
              stringComplete = false;
              sonarSerial.end();
              attempts++;
              delay (50);
            }
            while (attempts &lt;11 &amp;&amp; (range_mm8 &lt;= 300 || range_mm8 &gt;= 2000));
          }

          delay (200);
          sonarSerial.begin(9600);
          delay(250);
          range_mm9 = SonarRead();
          stringComplete = false;
          sonarSerial.end();
          delay(50);
          attempts = 0;
          if (range_mm9 &lt;= 300 || range_mm9 &gt;= 2000 )
          {
            do {
              sonarSerial.begin(9600);
              delay(250);
              range_mm9 = SonarRead();
              stringComplete = false;
              sonarSerial.end();
              attempts++;
              delay (50);
            }
            while (attempts &lt;11 &amp;&amp; (range_mm9 &lt;= 300 || range_mm9 &gt;= 2000));
          }

          delay (200);
          sonarSerial.begin(9600);
          delay(250);
          range_mm10 = SonarRead();
          stringComplete = false;
          sonarSerial.end();
          delay(50);
          attempts = 0;
          if (range_mm10 &lt;= 300 || range_mm10 &gt;= 2000 )
          {
            do {
              sonarSerial.begin(9600);
              delay(250);
              range_mm10 = SonarRead();
              stringComplete = false;
              sonarSerial.end();
              attempts++;
              delay (50);
            }
            while (attempts &lt;11 &amp;&amp; (range_mm10 &lt;= 300 || range_mm10 &gt;= 2000));
          }

          delay (100);

          digitalWrite(8, LOW);
          digitalWrite(10, LOW);
          //following records ten data reads.
      dataRec += ",";
      dataRec += range_mm1;
      dataRec += ",";
      dataRec += range_mm2;
      dataRec += ",";
      dataRec += range_mm3;
      dataRec += ",";
      dataRec += range_mm4;
      dataRec += ",";
      dataRec += range_mm5;
      dataRec += ",";
      dataRec += range_mm6;
      dataRec += ",";
      dataRec += range_mm7;
      dataRec += ",";
      dataRec += range_mm8;
      dataRec += ",";
      dataRec += range_mm9;
      dataRec += ",";
      dataRec += range_mm10;

          if (range_mm1 &lt;= 300 || range_mm1 &gt;= 2000)
          {
            range_mm1 = average_mm;
          }
          if (range_mm2 &lt;= 300 || range_mm2 &gt;= 2000)
          {
            range_mm2 = average_mm;
          }
          if (range_mm3 &lt;= 300 || range_mm3 &gt;= 2000)
          {
            range_mm3 = average_mm;
          }
          if (range_mm4 &lt;= 300 || range_mm4 &gt;= 2000)
          {
            range_mm4 = average_mm;
          }
          if (range_mm5 &lt;= 300 || range_mm5 &gt;= 2000)
          {
            range_mm5 = average_mm;
          }
          if (range_mm6 &lt;= 300 || range_mm6 &gt;= 2000)
          {
            range_mm6 = average_mm;
          }
          if (range_mm7 &lt;= 300 || range_mm7 &gt;= 2000)
          {
            range_mm7 = average_mm;
          }
          if (range_mm8 == 300 || range_mm8 &gt;= 2000)
          {
            range_mm8 = average_mm;
          }
          if (range_mm9 &lt;= 300 || range_mm9 &gt;= 2000)
          {
            range_mm9 = average_mm;
          }
          if (range_mm10 &lt;= 300 || range_mm10  &gt;= 2000)
          {
            range_mm10 = average_mm;
          }


          total = (range_mm1 + range_mm2 + range_mm3 + range_mm4 + range_mm5 + range_mm6 + range_mm7 + range_mm8 + range_mm9 + range_mm10);
          average_mm = (total/10);


      dataRec += ",avg= ";
      dataRec+= average_mm;



          //Save the data record to the log file
          logData(dataRec);

          //Echo the data to the serial connection
          //Serial.println();
          //Serial.print("Data Record: ");
          //Serial.println(dataRec);


          String dataRec = "";
     }

     systemSleep();
     }



void showTime(uint32_t ts)
{
  //Retrieve and display the current date/time
  String dateTime = getDateTime();
  //Serial.println(dateTime);
}

void setupTimer()
{

  //Schedule the wakeup every minute
  timer.every(READ_DELAY, showTime);

  //Instruct the RTCTimer how to get the current time reading
  timer.setNowCallback(getNow);


}

void wakeISR()
{
  //Leave this blank
}

void setupSleep()
{
  pinMode(RTC_PIN, INPUT_PULLUP);
  PcInt::attachInterrupt(RTC_PIN, wakeISR);

  //Setup the RTC in interrupt mode
  rtc.enableInterrupts(RTC_INT_PERIOD);

  //Set the sleep mode
  set_sleep_mode(SLEEP_MODE_PWR_DOWN);
}

void systemSleep()
{
  //Wait until the serial ports have finished transmitting
  Serial.flush();
  Serial1.flush();

  //The next timed interrupt will not be sent until this is cleared
  rtc.clearINTStatus();

  //Disable ADC
  ADCSRA &amp;= ~_BV(ADEN);

  //Sleep time
  noInterrupts();
  sleep_enable();
  interrupts();
  sleep_cpu();
  sleep_disable();

  //Enbale ADC
  ADCSRA |= _BV(ADEN);

}

String getDateTime()
{
  String dateTimeStr;

  //Create a DateTime object from the current time
  DateTime dt(rtc.makeDateTime(rtc.now().getEpoch()));

  currentepochtime = (dt.get());    //Unix time in seconds

  currentminute = (dt.minute());
  //Convert it to a String
  dt.addToString(dateTimeStr);
  return dateTimeStr;
}

uint32_t getNow()
{
  currentepochtime = rtc.now().getEpoch();
  return currentepochtime;
}

void greenred4flash()
{
  for (int i=1; i &lt;= 4; i++){
  digitalWrite(8, HIGH);
  digitalWrite(9, LOW);
  delay(50);
  digitalWrite(8, LOW);
  digitalWrite(9, HIGH);
  delay(50);
  }
  digitalWrite(9, LOW);
}

void setupLogFile()
{
  // initialize the SD card at SPI_FULL_SPEED for best performance.
  // try SPI_HALF_SPEED if bus errors occur.
  if (!SD.begin(SD_SS_PIN, SPI_HALF_SPEED)) {
    SD.initErrorHalt();
  }
  //Check if the file already exists
  bool oldFile = SD.exists(FILE_NAME);

  //Open the file in write mode
  File logFile = SD.open(FILE_NAME, FILE_WRITE);

  //Add header information if the file did not already exist
  if (!oldFile)
  {
    logFile.println(LOGGERNAME);
    logFile.println(DATA_HEADER);
  }

  //Close the file to save it
  logFile.close();
}

void logData(String rec)
{
  //Re-open the file
  File logFile = SD.open(FILE_NAME, FILE_WRITE);

  //Write the CSV data
  logFile.println(rec);

  //Close the file to save it
  logFile.close();
}

String createDataRecord()
{
    //Create a String type data record in csv format
    //TimeDate, Loggertime,Temp_DS, Diff1, Diff2, boardtemp
    String data = getDateTime();
    data += ",";

    rtc.convertTemperature();          //convert current temperature into registers
    boardtemp = rtc.getTemperature(); //Read temperature sensor value

    batterysenseValue = analogRead(batteryPin);
    batteryvoltage = (3.3/1023.) * (12.7/2.7) * batterysenseValue;

    data += currentepochtime;
    data += ",";

    addFloatToString(data, boardtemp, 3, 1);    //float
    data += ",";
    addFloatToString(data, batteryvoltage, 4, 2);

    return data;
}


static void addFloatToString(String &amp; str, float val, char width, unsigned char precision)
{
  char buffer&#091;10];
  dtostrf(val, width, precision, buffer);
  str += buffer;
}


int SonarRead()
{

  int result;
  char inData&#091;5];                                          //char array to read data into
  int index = 0;

  while (sonarSerial.read() != -1) {}

  while (stringComplete == false) {

      if (sonarSerial.available())
    {

      char rByte = sonarSerial.read();                     //read serial input for "R" to mark start of data
      if(rByte == 'R')
      {
        //Serial.println("rByte set");
        while (index &lt; 4)                                  //read next three character for range from sensor
        {
          if (sonarSerial.available())
          {
            delay(50);
            inData&#091;index] = sonarSerial.read();
            //Serial.println(inData&#091;index]);               //Debug line

            index++;                                       // Increment where to write next
          }
        }
        inData&#091;index] = 0x00;                              //add a padding byte at end for atoi() function
      }

      rByte = 0;                                           //reset the rByte ready for next reading

      index = 0;                                           // Reset index ready for next reading
      stringComplete = true;                               // Set completion of read to true
      result = atoi(inData); // Changes string data into an integer for use

    }


    }




  return result;
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

502

503

504

505

506

507

508

509

510

511

512

513

514

515

516

517

518

519

520

521

522

523

524

525

526

527

528

529

530

531

532

533

534

535

536

537

538

539

540

541

542

543

544

545

546

547

548

549

550

551

552

553

554

555

556

557

558

559

560

561

562

563

564

565

566

567

568

569

570

571

572

573

574

575

576

577

578

579

580

581

582

583

584

585

586

587

588

589

590

591

592

593

594

595

596

597

598

599

600

601

602

603

604

605

606

607

608

609

610

611

612

613

614

615

616

617

618

619

620

621

622

623

624

625

626

627

628

629

630

631

632

633

634

635

636

637

638

639

640

641

642

643

644

645

646

647

648

649

650

651

652

653

654

655

656

657

658

659

660

661

662

663

664

665

666

667

668

669

670

671

672

673

674

675

676

#include <SoftwareSerial_PCINT12.h>

#include <Sodaq_PcInt_PCINT0.h>

//sketch to log sonar data on Mayfly

//this one can use digital pin intermittent power or continuous power from board +rail

//or a battery pack to power Maxbotix

//serialSonar begin and end empty buffer between each read so all data is new each time

//this also solves problems with the interrupts not allowing sleep code

#include <Wire.h>

#include <avr/sleep.h>

#include <avr/wdt.h>

#include <SPI.h>

#include <SdFat.h>

SdFat SD;

#include <RTCTimer.h>

#include <Sodaq_DS3231.h>

SoftwareSerial sonarSerial(11, -1);

boolean stringComplete = false;

#define READ_DELAY 1

//RTC Timer

RTCTimer timer;

String dataRec = "";

int currentminute;

long currentepochtime = 0;

float boardtemp = 0.0;

int batteryPin = A6; // select the input pin for the potentiometer

int batterysenseValue = 0; // variable to store the value coming from the sensor

float batteryvoltage;

int range_mm1;

int range_mm2;

int range_mm3;

int range_mm4;

int range_mm5;

int range_mm6;

int range_mm7;

int range_mm8;

int range_mm9;

int range_mm10;

int range_mm;

int attempts;

int average_mm;

int total;

//RTC Interrupt pin

#define RTC_PIN A7

#define RTC_INT_PERIOD EveryMinute

#define SD_SS_PIN 12

//The data log file

#define FILE_NAME "SonicLog.txt"

//Data header

#define LOGGERNAME "Ultrasonic Maxbotix Sensor Datalogger"

#define DATA_HEADER "DateTime,Loggertime,BoardTemp,Battery_V,SonarRange_mm 1 to 10"

void setup()

{

rtc.begin();

delay(100);

pinMode(8, OUTPUT);

pinMode(9, OUTPUT);

pinMode(10, OUTPUT);

greenred4flash(); //blink the LEDs to show the board is on

setupLogFile();

//Setup timer events

setupTimer();

//Setup sleep mode

setupSleep();

///Serial.println("Power On, running: ultrasonic_logger_example_1.ino");

digitalWrite(8, HIGH);

digitalWrite(10, HIGH);

stringComplete = false;

delay(5000);//wait for board to stabilize

sonarSerial.begin(9600);

range_mm = SonarRead();//does not add data to a string, included only for debugging

sonarSerial.end();

attempts = 0;

if (range_mm <= 300 || range_mm >= 2000 )

{

do {

sonarSerial.begin(9600);

delay (250);

range_mm = SonarRead();

stringComplete = false;

attempts++;

sonarSerial.end();

delay (50);

}

while (attempts <21 && (range_mm == 300 || range_mm == 0));

}

average_mm = range_mm; //sets initial average for trapping on first reading

digitalWrite(10, LOW);

digitalWrite(8,LOW);

delay (1000);//added to show blink of led before loop.

}

void loop()

{

//Update the timer

timer.update();

if(currentminute % 5 == 0)

{

digitalWrite(8, HIGH);

dataRec = createDataRecord();

stringComplete = false;

delay(100);

digitalWrite(10, HIGH);//turns on power to sonar

delay(10000);//wait 10 sec for sonar to stabilize after startup

sonarSerial.begin(9600);//open to allow data from sonar to enter input serial buffer

//also clears buffer of old data

delay(250);

range_mm1 = SonarRead();

stringComplete = false;

sonarSerial.end();//closes serial and stops input to buffer

delay(50);

attempts = 0;

if (range_mm1 <= 300 || range_mm1 >= 2000 )

{

do {

sonarSerial.begin(9600);

delay (250);

range_mm1 = SonarRead();

stringComplete = false;

attempts++;

sonarSerial.end();

delay (50);

}

while (attempts <11 && (range_mm1 <= 300 || range_mm1 >= 2000));

}

delay (200);

sonarSerial.begin(9600);

delay(250);

range_mm2 = SonarRead();

stringComplete = false;

sonarSerial.end();

attempts = 0;

delay(50);

if (range_mm2 <= 300 || range_mm2 >= 2000 )

{

do {

sonarSerial.begin(9600);

delay (250);

range_mm2 = SonarRead();

stringComplete = false;

sonarSerial.end();

attempts++;

delay (50);

}

while (attempts <11 && (range_mm2 <= 300 || range_mm2 >= 2000));

}

delay (200);

sonarSerial.begin(9600);

delay(250);

range_mm3 = SonarRead();

stringComplete = false;

sonarSerial.end();

delay(50);

attempts = 0;

if (range_mm3 <= 300 || range_mm3 >= 2000 )

{

do {

sonarSerial.begin(9600);

delay(250);

range_mm3 = SonarRead();

stringComplete = false;

sonarSerial.end();

attempts++;

delay (50);

}

while (attempts <11 && (range_mm3 <= 300 || range_mm3 >= 2000));

}

delay (200);

sonarSerial.begin(9600);

delay (250);

range_mm4 = SonarRead();

stringComplete = false;

sonarSerial.end();

attempts = 0;

delay (50);

if (range_mm4 <= 300 || range_mm4 >= 2000 )

{

do {

sonarSerial.begin(9600);

delay(250);

range_mm4 = SonarRead();

stringComplete = false;

sonarSerial.end();

attempts++;

delay (50);

}

while (attempts <11 && (range_mm4 <= 300 || range_mm4 >= 2000));

}

delay (200);

sonarSerial.begin(9600);

delay (250);

range_mm5 = SonarRead();

stringComplete = false;

sonarSerial.end();

delay(50);

attempts = 0;

if (range_mm5 <= 300 || range_mm5 >= 2000 )

{

do {

sonarSerial.begin(9600);

delay(250);

range_mm5 = SonarRead();

stringComplete = false;

sonarSerial.end();

attempts++;

delay (50);

}

while (attempts <11 && (range_mm5 <= 300 || range_mm5 >= 2000));

}

delay (200);

sonarSerial.begin(9600);

delay(250);

range_mm6 = SonarRead();

stringComplete = false;

sonarSerial.end();

delay(50);

attempts = 0;

if (range_mm6 <= 300 || range_mm6 >= 2000 )

{

do {

sonarSerial.begin(9600);

delay(250);

range_mm6 = SonarRead();

stringComplete = false;

sonarSerial.end();

attempts++;

delay (50);

}

while (attempts <11 && (range_mm6 <= 300 || range_mm6 >= 2000));

}

delay (200);

sonarSerial.begin(9600);

delay(250);

range_mm7 = SonarRead();

stringComplete = false;

sonarSerial.end();

delay(50);

attempts = 0;

if (range_mm7 <= 300 || range_mm7 >= 2000 )

{

do {

sonarSerial.begin(9600);

delay(250);

range_mm7 = SonarRead();

stringComplete = false;

sonarSerial.end();

attempts++;

delay (50);

}

while (attempts <11 && (range_mm7 <= 300 || range_mm7 >= 2000));

}

delay (200);

sonarSerial.begin(9600);

delay(250);

range_mm8 = SonarRead();

stringComplete = false;

sonarSerial.end();

delay(50);

attempts = 0;

if (range_mm8 <= 300 || range_mm8 >= 2000 )

{

do {

sonarSerial.begin(9600);

delay(250);

range_mm8 = SonarRead();

stringComplete = false;

sonarSerial.end();

attempts++;

delay (50);

}

while (attempts <11 && (range_mm8 <= 300 || range_mm8 >= 2000));

}

delay (200);

sonarSerial.begin(9600);

delay(250);

range_mm9 = SonarRead();

stringComplete = false;

sonarSerial.end();

delay(50);

attempts = 0;

if (range_mm9 <= 300 || range_mm9 >= 2000 )

{

do {

sonarSerial.begin(9600);

delay(250);

range_mm9 = SonarRead();

stringComplete = false;

sonarSerial.end();

attempts++;

delay (50);

}

while (attempts <11 && (range_mm9 <= 300 || range_mm9 >= 2000));

}

delay (200);

sonarSerial.begin(9600);

delay(250);

range_mm10 = SonarRead();

stringComplete = false;

sonarSerial.end();

delay(50);

attempts = 0;

if (range_mm10 <= 300 || range_mm10 >= 2000 )

{

do {

sonarSerial.begin(9600);

delay(250);

range_mm10 = SonarRead();

stringComplete = false;

sonarSerial.end();

attempts++;

delay (50);

}

while (attempts <11 && (range_mm10 <= 300 || range_mm10 >= 2000));

}

delay (100);

digitalWrite(8, LOW);

digitalWrite(10, LOW);

//following records ten data reads.

dataRec += ",";

dataRec += range_mm1;

dataRec += ",";

dataRec += range_mm2;

dataRec += ",";

dataRec += range_mm3;

dataRec += ",";

dataRec += range_mm4;

dataRec += ",";

dataRec += range_mm5;

dataRec += ",";

dataRec += range_mm6;

dataRec += ",";

dataRec += range_mm7;

dataRec += ",";

dataRec += range_mm8;

dataRec += ",";

dataRec += range_mm9;

dataRec += ",";

dataRec += range_mm10;

if (range_mm1 <= 300 || range_mm1 >= 2000)

{

range_mm1 = average_mm;

}

if (range_mm2 <= 300 || range_mm2 >= 2000)

{

range_mm2 = average_mm;

}

if (range_mm3 <= 300 || range_mm3 >= 2000)

{

range_mm3 = average_mm;

}

if (range_mm4 <= 300 || range_mm4 >= 2000)

{

range_mm4 = average_mm;

}

if (range_mm5 <= 300 || range_mm5 >= 2000)

{

range_mm5 = average_mm;

}

if (range_mm6 <= 300 || range_mm6 >= 2000)

{

range_mm6 = average_mm;

}

if (range_mm7 <= 300 || range_mm7 >= 2000)

{

range_mm7 = average_mm;

}

if (range_mm8 == 300 || range_mm8 >= 2000)

{

range_mm8 = average_mm;

}

if (range_mm9 <= 300 || range_mm9 >= 2000)

{

range_mm9 = average_mm;

}

if (range_mm10 <= 300 || range_mm10 >= 2000)

{

range_mm10 = average_mm;

}

total = (range_mm1 + range_mm2 + range_mm3 + range_mm4 + range_mm5 + range_mm6 + range_mm7 + range_mm8 + range_mm9 + range_mm10);

average_mm = (total/10);

dataRec += ",avg= ";

dataRec+= average_mm;

//Save the data record to the log file

logData(dataRec);

//Echo the data to the serial connection

//Serial.println();

//Serial.print("Data Record: ");

//Serial.println(dataRec);

String dataRec = "";

}

systemSleep();

}

void showTime(uint32_t ts)

{

//Retrieve and display the current date/time

String dateTime = getDateTime();

//Serial.println(dateTime);

}

void setupTimer()

{

//Schedule the wakeup every minute

timer.every(READ_DELAY, showTime);

//Instruct the RTCTimer how to get the current time reading

timer.setNowCallback(getNow);

}

void wakeISR()

{

//Leave this blank

}

void setupSleep()

{

pinMode(RTC_PIN, INPUT_PULLUP);

PcInt::attachInterrupt(RTC_PIN, wakeISR);

//Setup the RTC in interrupt mode

rtc.enableInterrupts(RTC_INT_PERIOD);

//Set the sleep mode

set_sleep_mode(SLEEP_MODE_PWR_DOWN);

}

void systemSleep()

{

//Wait until the serial ports have finished transmitting

Serial.flush();

Serial1.flush();

//The next timed interrupt will not be sent until this is cleared

rtc.clearINTStatus();

//Disable ADC

ADCSRA &= ~_BV(ADEN);

//Sleep time

noInterrupts();

sleep_enable();

interrupts();

sleep_cpu();

sleep_disable();

//Enbale ADC

ADCSRA |= _BV(ADEN);

}

String getDateTime()

{

String dateTimeStr;

//Create a DateTime object from the current time

DateTime dt(rtc.makeDateTime(rtc.now().getEpoch()));

currentepochtime = (dt.get()); //Unix time in seconds

currentminute = (dt.minute());

//Convert it to a String

dt.addToString(dateTimeStr);

return dateTimeStr;

}

uint32_t getNow()

{

currentepochtime = rtc.now().getEpoch();

return currentepochtime;

}

void greenred4flash()

{

for (int i=1; i <= 4; i++){

digitalWrite(8, HIGH);

digitalWrite(9, LOW);

delay(50);

digitalWrite(8, LOW);

digitalWrite(9, HIGH);

delay(50);

}

digitalWrite(9, LOW);

}

void setupLogFile()

{

// initialize the SD card at SPI_FULL_SPEED for best performance.

// try SPI_HALF_SPEED if bus errors occur.

if (!SD.begin(SD_SS_PIN, SPI_HALF_SPEED)) {

SD.initErrorHalt();

}

//Check if the file already exists

bool oldFile = SD.exists(FILE_NAME);

//Open the file in write mode

File logFile = SD.open(FILE_NAME, FILE_WRITE);

//Add header information if the file did not already exist

if (!oldFile)

{

logFile.println(LOGGERNAME);

logFile.println(DATA_HEADER);

}

//Close the file to save it

logFile.close();

}

void logData(String rec)

{

//Re-open the file

File logFile = SD.open(FILE_NAME, FILE_WRITE);

//Write the CSV data

logFile.println(rec);

//Close the file to save it

logFile.close();

}

String createDataRecord()

{

//Create a String type data record in csv format

//TimeDate, Loggertime,Temp_DS, Diff1, Diff2, boardtemp

String data = getDateTime();

data += ",";

rtc.convertTemperature(); //convert current temperature into registers

boardtemp = rtc.getTemperature(); //Read temperature sensor value

batterysenseValue = analogRead(batteryPin);

batteryvoltage = (3.3/1023.) * (12.7/2.7) * batterysenseValue;

data += currentepochtime;

data += ",";

addFloatToString(data, boardtemp, 3, 1); //float

data += ",";

addFloatToString(data, batteryvoltage, 4, 2);

return data;

}

static void addFloatToString(String & str, float val, char width, unsigned char precision)

{

char buffer[10];

dtostrf(val, width, precision, buffer);

str += buffer;

}

int SonarRead()

{

int result;

char inData[5]; //char array to read data into

int index = 0;

while (sonarSerial.read() != -1) {}

while (stringComplete == false) {

if (sonarSerial.available())

{

char rByte = sonarSerial.read(); //read serial input for "R" to mark start of data

if(rByte == 'R')

{

//Serial.println("rByte set");

while (index < 4) //read next three character for range from sensor

{

if (sonarSerial.available())

{

delay(50);

inData[index] = sonarSerial.read();

//Serial.println(inData[index]); //Debug line

index++; // Increment where to write next

}

inData[index] = 0x00; //add a padding byte at end for atoi() function

}

rByte = 0; //reset the rByte ready for next reading

index = 0; // Reset index ready for next reading

stringComplete = true; // Set completion of read to true

result = atoi(inData); // Changes string data into an integer for use

}

return result;

}

sensors

4.5 2 votes

Article Rating

6 Comments

Oldest

Newest Most Voted

Inline Feedbacks

View all comments

neilh20

3 years ago

Thankyou so much for doing such detailed work. I’d been thinking of a boom situation for some measurements. However the atmospheric temperature will vary.

James_NZ

3 years ago

Great work guys. We are also interested in these sensors and have also been considering a boom-type setup.
I think it might be worth getting one of these to see if it’s fit for our purpose.

Rory G

3 years ago

Hey Dave,
As part of my technical institute’s graduation requirements, I’m currently designing a project to test the accuracy of MaxBotix’s sensors (as well as a $75 vented pressure transducer) to determine their applicability for streamflow monitoring. I’m also a hydrometric tech so do put a lot of thought into collecting accurate data.

With that said, I do have a couple of thoughts to consider in regards to how your test was designed.

Here they are in point form for brevity’s sake:

The U20-001-04’s (13 ft range) accuracy is 3-6 mm, so that needs to be considered. It also needs to be compensated with barrometric pressure (not mentioned in the report) which adds additional inaccuracies.
When measuring water in a stilling well with a pressure transducer, and the surface of the water with an ultrasonic sensor, you can’t consider the two data sets as reporting the same values. In high-velocity situations, you can get positive or negative pressure, thus lowering or raising the water level, in your stilling well depending on how it is designed.
And most importantly, in your on-ground test, the image shows that the sensor is on a metal boom. This is problematic as long metal objects deform/bend with temperature. You metnioned that you also did this test with the sensor at the top of a stilling well, but I didn’t see those images.

Anyhow, I don’t mean to be a downer. I basically just listed these points as I’ll be critiquing your work in a literature review as part of my project.

Really though I think it’s great that you’ve gone to all this work to test the sensor. I learned a few ideas from reading this that I’ll be incorporating into my tests.

Give me a shout at gallaugher.consulting@gmail.com if you are up to chatting about your tests and helping me to design mine.

Dave Yake

Author

Reply to Rory G

3 years ago

Rory,

I have copied the comments from our email so that others can view them… thanks again.

dave

The U20-001-04’s (13 ft range) accuracy is 3-6 mm, so that needs to be considered. It also needs to be compensated with barrometric pressure (not mentioned in the report) which adds additional inaccuracies.

With respect to the barometric pressure: a. Pressure sensor for depth: Remember that we are compensating for barometric pressure changes in the Onset logger by having a parallel sensor following barometric pressure. Not sure he understood that. b. Also, with respect to the ultrasonic sensor, the barometric pressure has a very minimal effect on the speed of sound in air. Marion remembers that it is 2 orders of magnitude below the effect of both temperature and relative humidity (which is much lower than the temp effect.) So, really the only important effect is the temperature effect on speed of sound.

</li><li>When measuring water in a stilling well with a pressure transducer, and the surface of the water with an ultrasonic sensor, you can’t consider the two data sets as reporting the same values. In high-velocity situations, you can get positive or negative pressure, thus lowering or raising the water level, in your stilling well depending on how it is designed.

We discarded using the ultrasonic sensor on a stilling well due to the signal dropouts which were somewhat erratic as to when they occurred, but clearly were connected to temp changes from high to low which induced some kind of condensation on the walls (that caused deflection of the wave). Similarly, we actually dispensed with the stilling well on the Onset depth logger just for convenience. So, stilling well experience is not something where got comparison data. The Final result comparisons were not data from stilling wells..

</li><li>And most importantly, in your on-ground test, the image shows that the sensor is on a metal boom. This is problematic as long metal objects deform/bend with temperature.

We don’t believe your comments about the metal boom having a significant impact on correct. If you calculate the change in dimension for a uniform metal (ie..
no bimetallic effect) that is heated on only one side (eg. sun) while the other side is cool (shady side) then you can see that the metal is much less than wood. For example, CTE’s for metal will run around 1 * 10**-5 while wood will be at least 10X higher. Still, neither will show much bending with temperature differentials that we see in outside testing. That said, however, it is a concern for planned experiments, and easy to manually measure the separate distance from the boom to the target over the temp range..

We would be interested in your results if/when available…. In particular, it would be helpful to see what the temperature effect (water temp) has on a pressure sensor logger (such as the Onset or the CTD sensor used in the Stroud logger stations..

Rory G

3 years ago

Hi David,

Just to follow up on your comments, and then provide the report that I wrapped up last month where I tested the Maxbotix sensor.

Just a quick reply to each comment here:
1) yep, definitely understand that barometric pressure is only relevant to the pressure transducer and that the ultrasonic sensor is mostly affected by air temp.
2) stilling well placement is finicky, and so thought I would just comment on that. It’s not where I would have placed the well but to each their own.
3) Interesting to learn that wood would bend more than metal. I had not done the calculations but was told by Water Survey Canada that they accidentally collected errored water level data because they had an ultrasonic sensor on a metal boom that fluctuated with temp.

I should mention too that my comments were in preparation for a literature review that I was preparing for my report. There isn’t much material available on the accuracy of Maxbotix sensors, and so was overly critical of what I did find to show my professors that I have my own thoughts on the current research. In reality, though I really enjoyed your work and found it quite helpful.

I’ll post my research on this blog shortly, but in the meantime, it can be downloaded at the following link:
https://drive.google.com/file/d/1TwziM5uK7JQWOxKAlAWntKWqhyg-bLit/view?usp=sharing

Vinay Ayala

Reply to Rory G

3 years ago

@Rory G I need some assistance testing my maxbotix MB-7386 and I posted my issues in the forum…can you please assist?

Evaluating Maxbotix Ultrasonic Sensors for Monitoring Stream Base Flow

Background

Equipment List and Setup

Reviewing the Results

The Positives

The Negatives

Test Data versus Temperature

Conclusions

Browse Post Categories

Latest Blog Posts

Top 10 Tags
