I’m glad it worked. We’re working on switching out all of the Amazon inventory with new boards and we’ll be testing each of them first for proper battery connections. It can sometimes be hard to solder to a battery which is why I suggested doing the board first. The next run of boards will have a different battery holder and board footprint so this issue can be avoided.
I’ve got some sketches about sleeping the Mayfly, I’ll try to post them soon. I’ve got a backlog of software examples to post, but also dealing with hardware and inventory stuff, so we’re rather busy here. It’s helpful to get requests from people so I know where to concentrate my efforts. Thanks for the heads up about the battery issue.
DaveE, did you have a similar problem with your board?

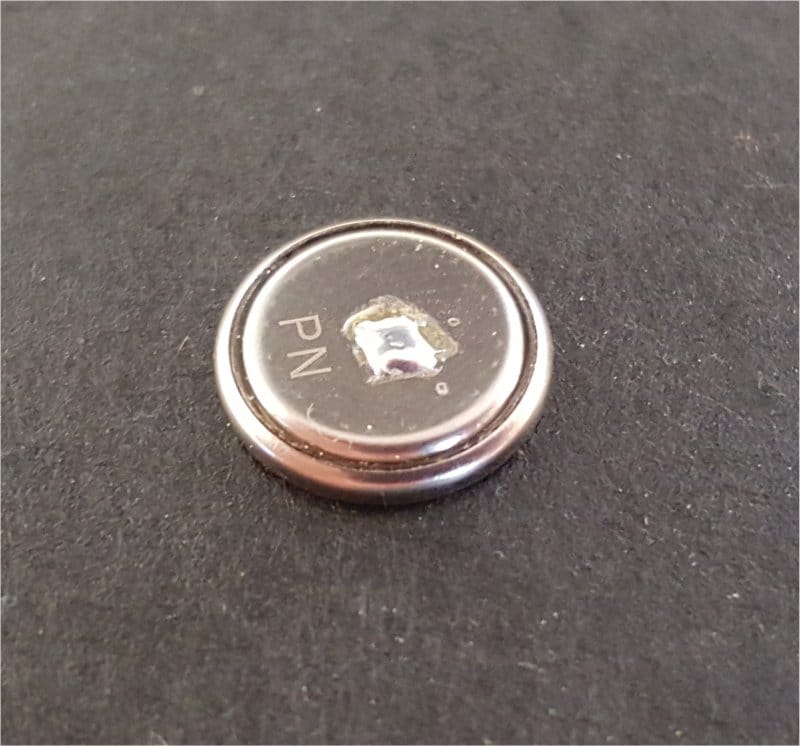

I just did some more testing with a dozen boards. Out of all of them, I found one that exhibited behavior similar to yours. It looks like the green solder mask paint is thick enough on some boards that it is preventing the battery’s negative side from sitting completely flush against the circular ground pad on the Mayfly board. You can easily remedy this by adding a very small layer of solder to the circular pad, if you have a fine enough point on your soldering iron to reach the pad without creating a solder bridge to the metal of the battery connector above it. Or you can solder a very small drop of solder in the center of the battery, like in the attached photo.
Attachments:
I just posted a helpful serial communication sketch. Try that and see if it works for you.
Some Bee modules might need additional signals or control lines to work properly. That’s why many of the Bee socket’s pins are connected to some digital pins. For example:
Bee CTS –> D19
Bee RTS –> D20
Bee DTR –> D23
Bee RI or Assoc –> A5 (via SJ7)Check the Bee section on the schematic to see how it’s connected.
That’s odd that you measure 3v on the battery alone but nothing when it’s installed in the holder on the board. Even a mostly-dead battery should read something besides 0.000v. You usually only see that if there’s a short circuit somewhere on the board (which it doesn’t look like there is, from looking at the photos), but the battery would have been drained pretty quickly, and getting quite hot in the process, and definitely wouldn’t measure at 3v separately.
With the battery installed, measure the voltage at the two points shown by the red arrows in the attached picture. That’s the closest 2 points to the battery, so you should see something. If you’re not getting anything, make sure there’s not some tape or plastic anywhere on the battery or inside the holder on the Mayfly. Another thing to check is the shape of the battery. Is it perfectly flat on the negative (bottom) side, and if you set it down on a flat, level surface, can you tell that the battery is resting on only the negative terminal and the edges of the positive outer casing aren’t contacting the surface? What brand of battery is it? Some batteries can become misshapen or were manufactured wrong so they don’t make good contact with board in holders like these. Do you have an extra battery that you can try, or do you have more than one Mayfly board?
Attachments:
Can you take a focused picture of just the back of the board and one of the front?
I haven’t had any problems with the Mayfly boards not retaining the time. I just tested 2 boards that have been on my bench for several months without any external batteries (other than the CR1220) and they both still knew the correct date and time. I then got out 5 new boards, inserted new CR1220 batteries, and then programmed them with the sketch you linked to, first uploading the code with the correct date and time in line 11, then commenting out line 19 and reprogramming it so the board only prints the current date/time on powerup. Leaving the boards for anywhere from 5 to 15 minutes without any external power, then connecting the USB cable, opening the serial terminal, and they all retained the correct time.
I’ve attached a photo showing the proper orientation for how to insert the battery. Double-check that you inserted it correctly. You should also check the voltage of the battery to make sure it is at 3v. The easiest way to do that is to put one voltmeter lead on the top of the CR1220 battery holder (the positive side), and use the metal housing of the main microSD card socket for the ground. You should see around 3v. If not, then remove the battery and check it outside of the Mayfly. Let me know what you find out.
Attachments:
Yes, I’ve done a variety of power measurements with the Mayfly board, so I can publish a table showing the different options. I’ll put a link to it here when the page is posted.
The Atlas Scientific sensors work fine with 3.3v VCC, so just connect the 3.3v pin on the Mayfly header (either the D22 switched or the constant 3.3v VCC pin) to the Atlas board along with a ground line. Then choose 2 free digital pins for the comms, like 6 & 7 or 10 & 11, and edit the first few lines of the sample code to change from the pins 2 & 3 that’s shown in the demo.
If Windows doesn’t find the drivers automatically, you’ll need to install them manually. I just installed the drivers on a dozen new Window 7 machines and WindowsUpdate was able to find the correct driver each time. The FTDIchip.org site has instructions for how to do that. Note that there are 2 different drivers that need to be installed: one is the FTDI drivers, and the other is the virtual com port (VCP). If the installation failed or didn’t go properly, the FTDI website has some instructions for how to update the drivers manually. If you check DeviceManager, do you see the virtual com port listed or any warnings under the ComPort or USB sections?
Another alternative is if you already have an FTDI device, like the Adafruit FTDI-Friend, the Sparkfun FTDI Breakout, or a cable with built-in FTDI, and you’ve used it with other boards, then just use that to program the Mayfly via the FTDI header.
Try this DHT sensor example. It shows you how to power the switchable Grove connectors, and you can just replace the DHT stuff with some SoftwareSerial code to use either the D6-7 or D10-11 pins for the serial comms.
Or you could use the D4-5 connector, the default jumper sets it to 3.3v constant. The D6-7 and D10-11 sockets are always switchable, either 3.3v or 5. Only experienced users should use the 5v option, since they will need to insure that the sensor or other peripheral device is either one-way or has level converters so that the higher voltage required by the remote device won’t get fed back to one of the Mayfly digital pins.
-
