EnviroDIY Monitoring Station Kit – Workshop Package

Note:  This is the 2022 version of the Monitoring Station Kit that is used only during hands-on EnviroDIY workshops.  Only certain workshop participants should purchase this item.  Part of this kit will be shipped to participants a few weeks before the workshop, and the rest of the kit will be available for pickup on workshop Day 2 for the in-person portion of the workshop.  Check with Stroud Water Research Center staff if you’re unsure about whether or not you should purchase this kit in preparation for a workshop.

The kit will come in the standard configuration with one cable gland for a water sensor (the Hydros 21 CTD sensor) and one small gland for the solar panel cable.  If you’re thinking of adding another sensor to your station at a later date (i.e. adding a turbidity sensor), email the workshop organizers (dbressler@stroudcenter.org) so we can pre-drill an extra hole in the case and include an extra cable gland (at no additional cost) so you can easily add one additional sensor to your station later.

The EnviroDIY Monitoring Station Kit contains parts for building a solar-powered station that transmits real-time data across 4G LTE cellular networks to the web. With proper programming, users can report their data to Monitor My Watershed and other IoT websites. This do-it-yourself kit requires computer programming using Arduino and requires mechanical assembly.

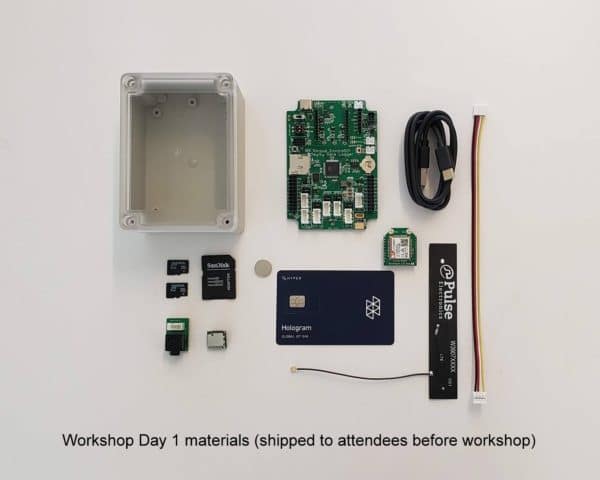

The Monitoring Station Kit contains:

• The Monitoring Station Kit contains:
  • Mayfly Data Logger board and USB-C cable for connection with computer
  • EnviroDIY LTE sim7080 cell module and LTE antenna
  • Hologram Global SIM card
  • 2 microSD cards and standard SD card adapter
  • vertical microSD card adapter for Mayfly Data Logger
  • CR1220 coin cell battery for Mayfly Data Logger clock
  • waterproof Pelican case with pre-cut foam and pre-drilled threaded holes for cable glands (one 3/8″NPT and one 1/2″NPT) and mounting bracket (two 1/4″ holes)
  • smaller RP1095c case for holding logger inside the Pelican case
  • 6-volt 3.5-watt solar panel with mounting bracket and U-bolt for mounting solar panel on a post, and solar power cable for connection with Mayfly Data Logger
  • 2 waterproof cable glands: 1 small (3/8″NPT for cables 0.08″ – 0.24″), 1 large (1/2″NPT for cables 0.24″-0.47″)
  • mounting bracket, nuts & bolts, and 2 hose-clamps for mounting the waterproof box on a post
  • Grove cable and a Grove-to-3.5 mm jack adapter for sensor connection (sensor not included)
  • stainless steel hose-clamp for attaching sensor bundle to pvc pipe (pipe not included) and stainless steel retaining pin for attaching pvc pipe (not included) to steel rebar (rebar not included)
  • 4400mAh Lithium battery

You will need additional parts to install the station, and a list of suggested parts can be found in the EnviroDIY Monitoring Station Manual Section 5.4.
