2022-02-13 at 3:49 PM #16440
James_NZ
Participant
Hi all,

Around 50% of my sites have a problem where the CTD drops out on a regular (not predictable) basis. This results in -9999 values which may persist for a few readings before returning to normal.

I still get a data record out of this, but the resolution is lower and I would like to fix it if possible.

Has anyone experienced this before? I have tried updating the code to the complex loop (to prevent the MODBUS wing interfering with the CTD) and replacing the stereo jack adapter.

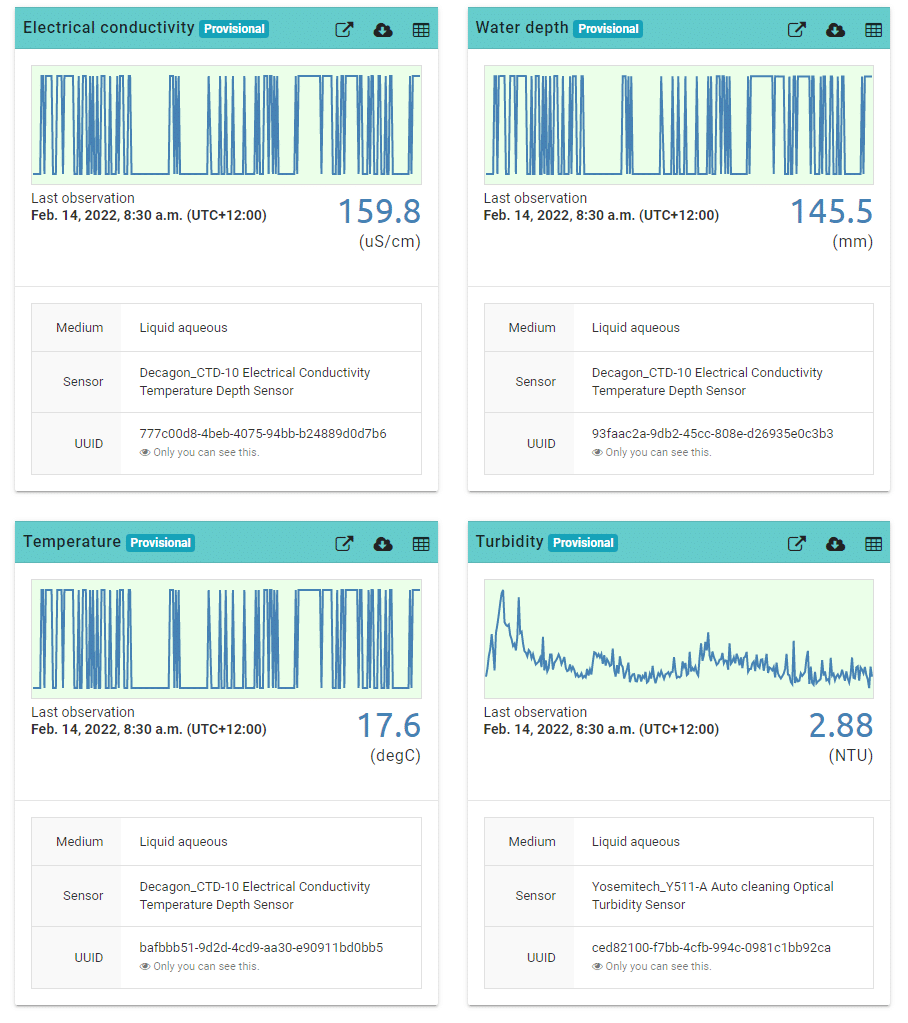

I have attached an image below, or you can see for yourself via this link:

Pongakawa Tributary at Old Coach Road (Patiki) (monitormywatershed.org)

Any help is much appreciated.

Regards,

James
Attachments:
1. CTD-9999.png
2022-02-13 at 4:43 PM #16442
Shannon Hicks
Moderator
We’ve seen that very rarely, usually it happens when the connection between the Mayfly and the sensor is bad, and the fault is either mechanical damage to the sensor cable (rodents chewing, flood damage, etc) or corrosion on the contacts inside the Grove stereo jack due to moisture inside the logger enclosure, or bad connection of the Grove cable between the stereo board and the Mayfly. So whenever we see this sort of pattern in a CTD sensor, we replace the Grove cable and stereo jack, and 95% of the time, that solves the problem. In the rest of the cases, it’s either damage to the sensor cable or the electronics inside the sensor itself are failing (usually due to impact to the sensor body from large debris during a storm).

But if you’ve already replaced the Grove jack (and the cables?) and you’re seeing this on more than one station, then it’s likely a code or voltage issue. What version of the Mayfly board are you using (v0.5b or v1.0)? I don’t know how you’re powering the RS-485 sensors, but if they are being powered using a boost circuit that’s powered from the same voltage regulator on the Mayfly that powers everything else on the board (including the CTD sensor), then it’s possible that a voltage drop during the sampling period is causing the CTD sensor to now be fully powered, thus causing a communication issue between the Mayfly and CTD, resulting in the Mayfly reporting -9999 as the CTD sensor parameters. Have you tried just unplugging the turbidity sensor from your setup (but don’t change the logger code) and see if you’re able to get reliable communication with the CTD sensor again? If so, that would indicate the problem is related to the turbidity sensor being added. Or it could just be a software issue due to timing or other problems with the sketch. You can email me your sketch if you’d like me to take a look at it, once you’ve ruled out all the other obvious physical failures.

Other troubleshooting ideas: If you’ve got one of the ZSC bluetooth sensor interfaces from Meter Group, you could test that the sensor is operating fine independently of the Mayfly, or you could program a spare Mayfly and connect it to only the CTD sensor (first with and then without a cellular board) and have it take frequent readings (like 1 minute) and let it run for a few hours to see if it drops any readings.
2022-02-14 at 12:29 AM #16443
neilh20
Participant
@James ouch. Looking at the data file, its just the Decagon CTD/SDI-12? readings that are responding -9999 . Typically that means the (SDI-12?) protocol has failed to communicate with the instrument.

At the same time Yosemite/Modbus? is responding well.

The CTD is only occasionally failing, or failing in groups, but still working some of the time. A hard failure where it fails all the time is easiest to debug. Intermittent failures are the hardest.

You started running the setup 2021-10-25 11:16 and

then it started failing 2021-12-09 14:45

and recovered 2021-12-14 13:00

Did you do anything to have it recover?

Since then it has intermittent failures. Ouch that is the hardest to troubleshoot.

I have one LT500 that is not working well with SDI-12, its mostly failing, but sometimes works. Similarly I purchased a device that is tested to the full SDI-12 device, and its also failing a lot. SDI-12 from the Mayfly is not a standard 0-5V, so I’m planning on moving it to the Modbus. I’m also trying to figure out a way of generating a fully specified SDI-12 0-5V
Attachments:
1. Screenshot-2022-02-13-204914.png

2022-02-14 at 3:19 AM #16445

James_NZ

Participant

Hi @shicks and @neilh20

I’m leaning more towards an interaction with the MODBUS wing. I had one station that produced -9999’s constantly when the Turbidity sensor was plugged in, and operated fine when I removed the MODBUS wing. This drove me nuts until Anthony pointed me towards the complex loop code where I set the Turbidity sensor to low after each reading to avoid bleeding voltage. I have subsequently uploaded the new code to all stations, which I assumed would fix the intermittent problems, but that doesn’t seem to be the case.

Other factors: there is no damage to the cables, no corrosion, and no perceivable storm damage.

Shannon, I’m using v0.5b and the sensor is powered from the grove slot (D10/D11). I changed the voltage jumper to 5v because 3.3v was resulting in -9999 values (I assume because of brownout?).

I haven’t tried unplugging the MODBUS wing, but I bet the CTD record would be perfect if I did. I can test this later this week if we don’t find another solution.

Perhaps it’s my code (see below)? Can either of you see any obvious errors?

Thanks for your help.

James

/*****************************************************************************
